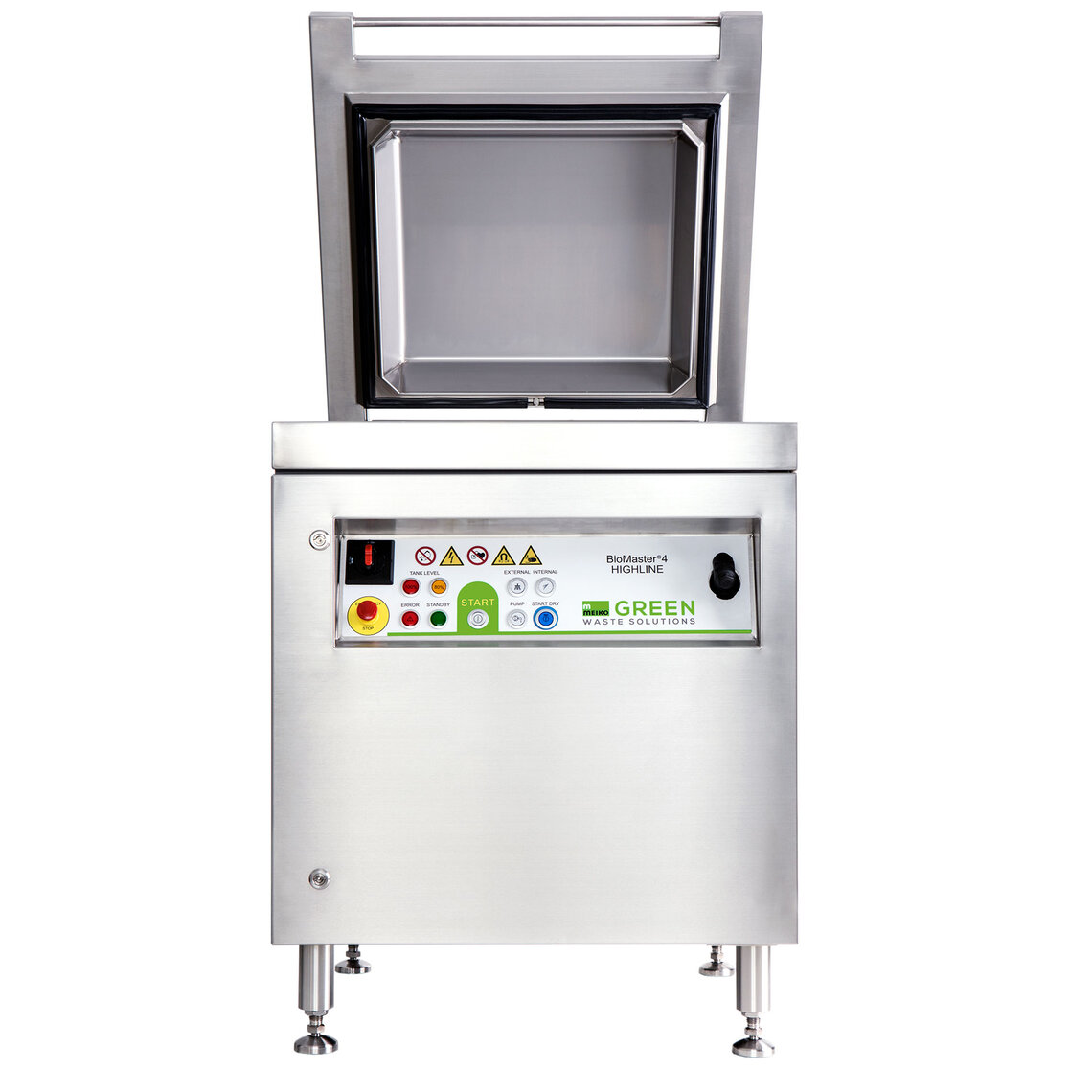

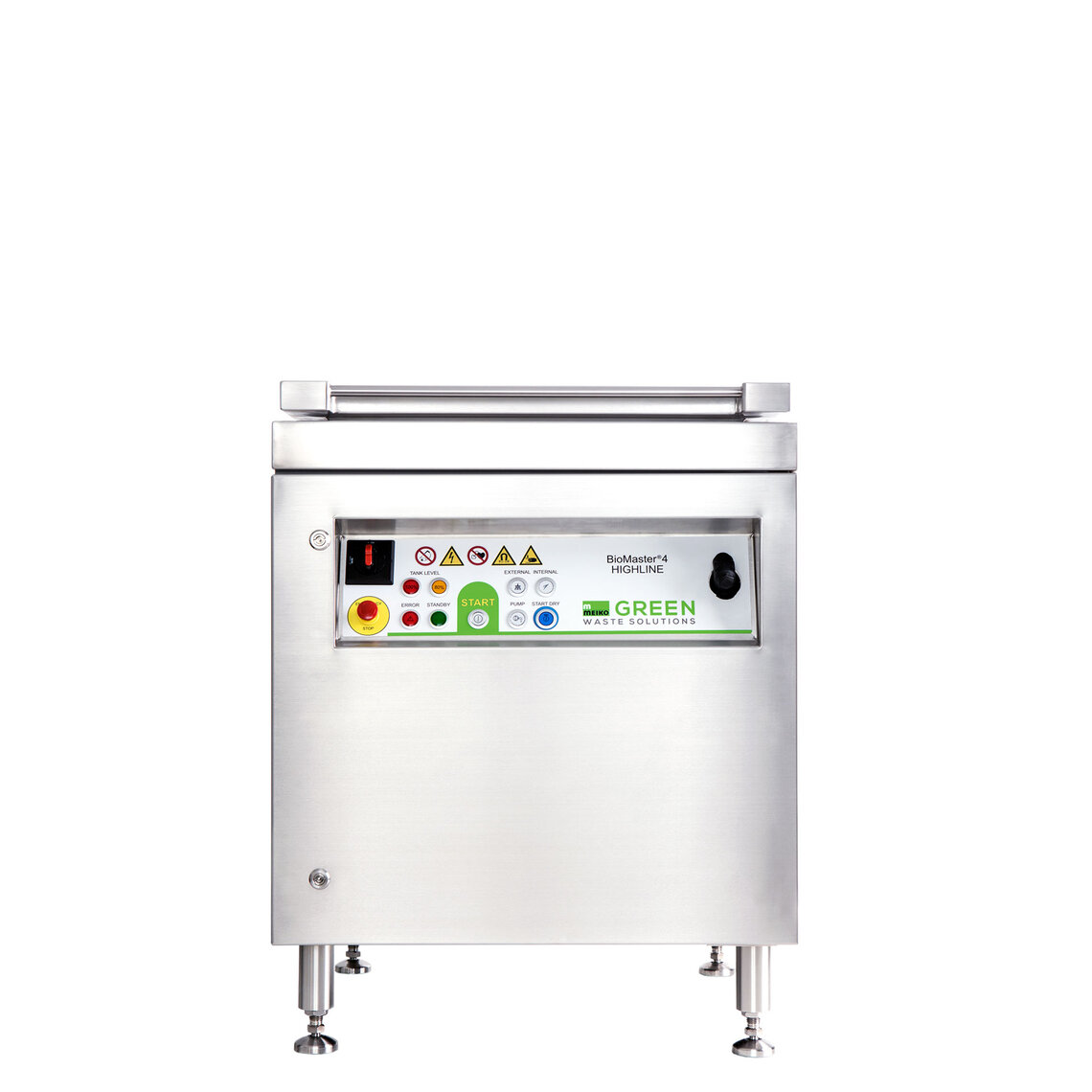

BioMaster®4 HIGHLINE

High-end performance and hygiene

The BioMaster®4 Highline makes it a cinch to process and collect large quantities of kitchen waste and food waste. Once on board, the ingenious features of the unit make it an indispensable member of the team in commercial kitchens.

Powerful, intelligent and easy to use - the BioMaster®4 HIGHLINE. Our most powerful waste disposal unit knows no limits and processes even the largest quantities of kitchen waste and food waste by type. The "STANDARD" and "DRY" programs wipe the slate clean, with absolute process reliability and a minimum of process water. Optimum hygiene and very easy cleaning are guaranteed thanks to the machine geometry, 150mm ground clearance, the optimal table connection. All this is rounded off by ingenious features such as the integrated cleaning program, a hand spray, water meter and much more.

Dimensions (W x Hmin x D)700 x 700 x 865 - 930 (verstellbare Füße) mm
ChassisKomplett in Edelstahl V2A
Chute volume40 l
Capacity≤ 1000 kg/h
Feed pump „BioPump®“1.1 kW, max. 80 l/min.
Macerator3 kW Bremsmotor, “Auto-Reverse“ kW
Biomass outlet connectionVerschraubung PE d-63
Cold water connectionAbsperrhahn mit ¾''-Aussengewinde
Addition of process waterAutomatisch, Wassermenge dosierbar
Electrical connectionFestanschluss, 400 V, 50Hz, 16A, 4,5 kW, Rechtsdrehfeld, Schutzschalter, Typ B 300mA, allstromsensitiv
Protection class of the machineIP X5
Noise emission≤ 70 dB
Leergewicht195 kg
Additional equipmentEntriegelungsschlüssel, optional: patent. Vorzerkleinerungseinheit, Trichteraufsatz als Spritzschutz, Sammelrollwagen, Besteckfangmagnet
