AZP

With this food waste collection system, the following various disposal alternatives are made possible:

  • composting plant
  • biogas plant
  • sewage treatment
  • dump

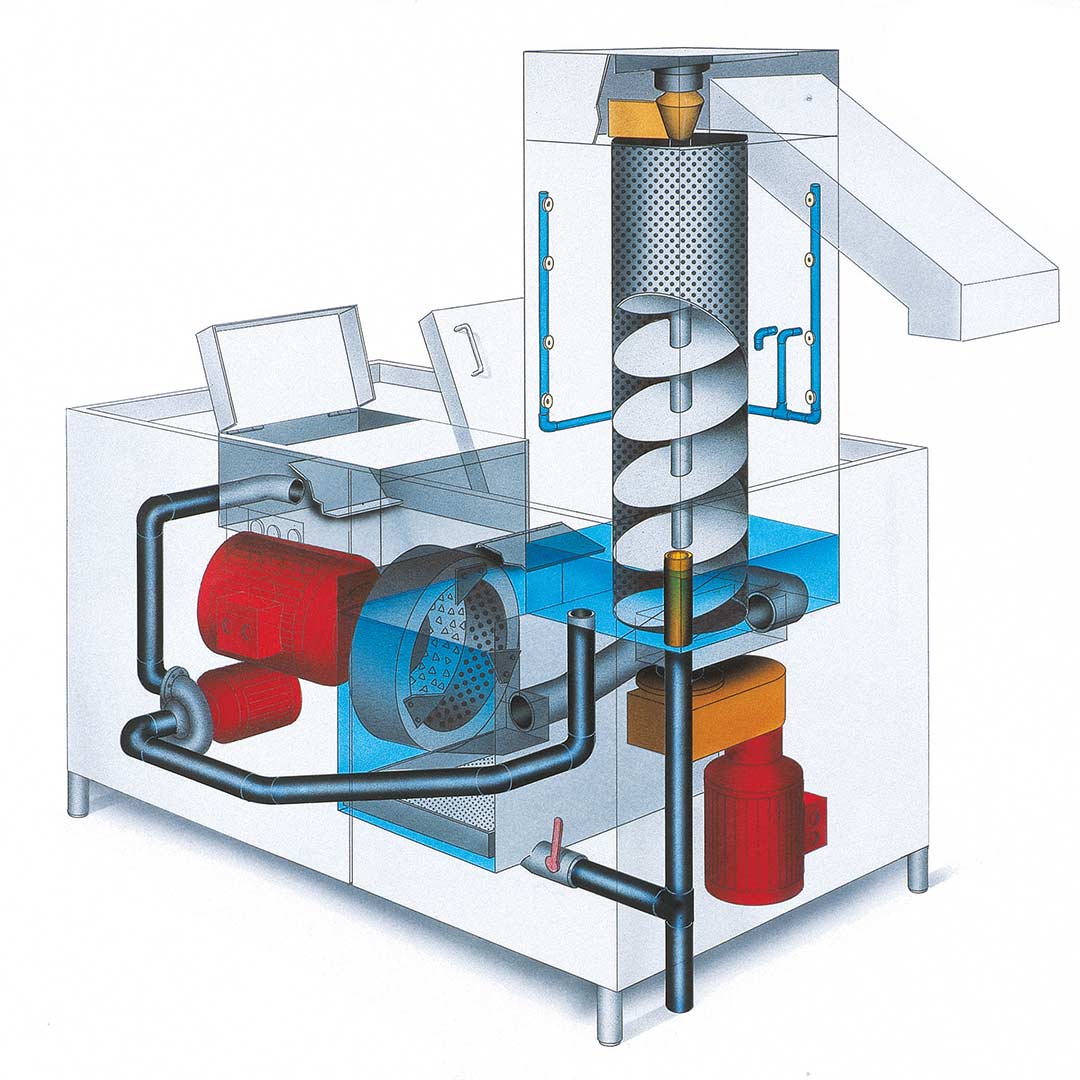

The restaurant food waste is either fed via a flushing trough or directly into the grinding mechanism. This grinding mechanism consists of a rotating grinding disc with sieve ring, pump housing and motor. The grinded food waste is continuously directed to the de-watering press, where it is compacted and de-watered to a large extent. A volume reduction of up to 85 % is obtainable! The water used for the flow system is continuously re-circulated by means of a heavy duty pump.

There are a multitude of planning possibilities allowing an adaptation to almost each constructional and organizational requirements: f. ex. several grinding mechanisms can be coupled with one de-watering press, even if these individual stations are located on different floors.

With this compact unit the grinding mechanism and de-watering press are installed separately, so that the grinding mechanism(s) are installed where the waste actually arises (f. ex. in the preparation zone or wash-up area), whereas the de-watering press is installed directly in the waste disposal room.

Restaurant food waste is transported to the garbage room in a hygienic way via pipelines without intermediate storage.

Dimensions (W x Hmin x D)1860 x 700 x 1675 mm
ChassisKomplett aus CrNi-Stahl
Volume processed and conveyedSpeisereste bis zu 450 kg / Stunde, gemischte Lebensmittelabfälle bis zu 320 kg / Stunde l/min
Total connected loadDrehstrom 400 V / 50 Hz, Leistung 7 kW
Gewicht gefülltca. 440 kg
